Duinotech Hall Effect Sensor with RaspberryPi

Hi everyone,

This is just a quick post to cover how the Duinotech hall effect sensor module (XC-4434) can be hooked up to a RaspberryPi.

Sample Code

The code below will output a zero when the sensor is activated by a magnet, otherwise a zero.


import time
import datetime
import RPi.GPIO as GPIO

# Define constants
BUCKET_HALL_EFFECT_SIG_PIN = 14

# Setup GPIO pins
GPIO.setmode(GPIO.BCM)
GPIO.setwarnings(False)
GPIO.setup(BUCKET_HALL_EFFECT_SIG_PIN, GPIO.IN, pull_up_down=GPIO.PUD_UP) # Important

while True:
print(str(GPIO.input(BUCKET_HALL_EFFECT_SIG_PIN))
time.sleep(0.5)

Wiring

Example

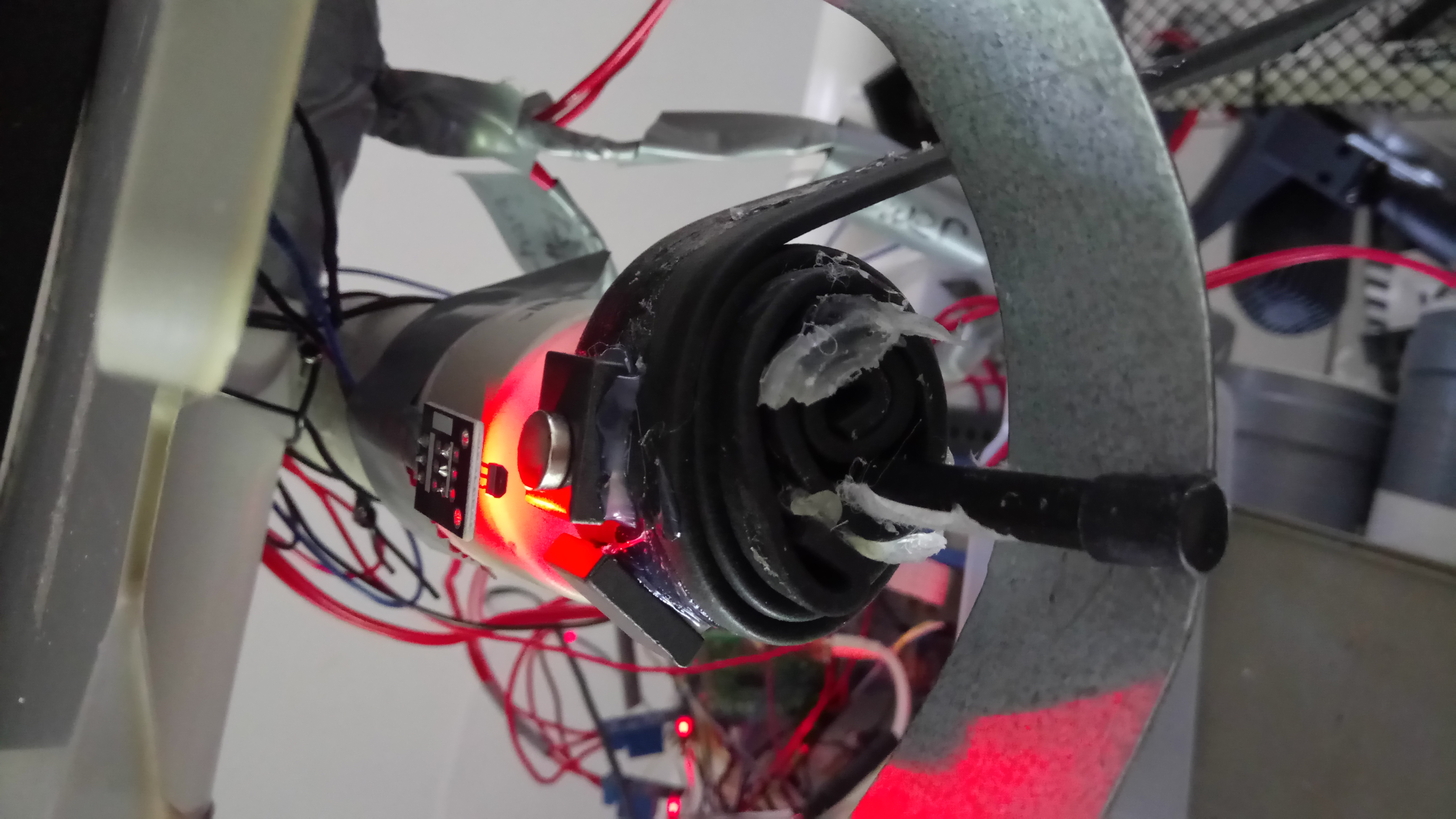

When near a magnetic field the light on the sensor will turn on. If you’re using the sample code above, a zero will be shown when close to a magnet, otherwise a 1.

Misc

Purchased from: https://www.jaycar.com.au/arduino-compatible-hall-effect-sensor-module/p/XC4434

Spec Sheet: Z7275
